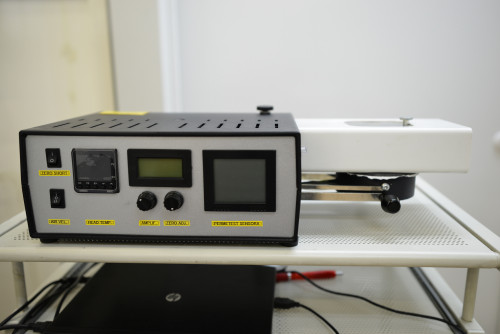

Device for the determination of water vapour and heat resistance
Manufacturer and type
Sensora, Permetest
Location
Department of Clothing Technology
Contact person:
Prof. Dubravko Rogale, PhD
dubravko.rogale@ttf.unizg.hr
Application:
The determination of water vapour and heat resistance.
Technical characteristics:
- Range of water vapour resistance: 1 - 200 m2 Pa / W
- Relative water vapour permeability range: 1,5 - 100%
- Thermal permeability range: 1 - 50 W/m2 /K
- Thermal resistance range: 0,02 - 1 m2 K / W
- Fabric thickness range: 0,1 - 7 mm (or more at lower precision)
- Adjustable main velocity of the parallel air stream: approx. 1,0 i 2,0 m / s
- Supply voltage: 120 or 220 V/50 - 60 Hz, input 50 W
