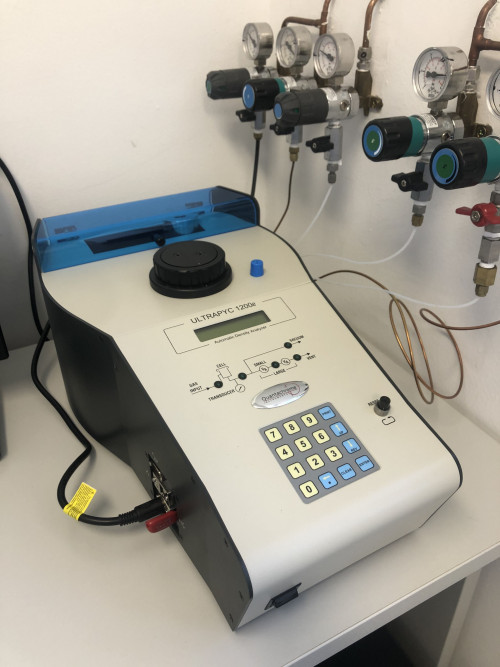

Gas Pycnometer

Manufacturer and type

Ultrapyc 1200e, Anton Paar, USA


Location

Department of Textile Chemistry and Ecology


Contact person:









Application:

The Ultrapyc 1200e measures the density of the sample at operating temperature, which is calculated from the difference between the volume of the cell without the sample and with the sample, with the measured mass of the sample entered before or after the measurement.


Technical characteristics:

  • Compact outer dimensions of 31.1x54.0x22.7 cm
  • Weight: 9.75 kg
  • Voltage: 100-240 VAC
  • Power (max): 150 W
  • Connection: grounded, single-phase outlet
  • Enviromental: operating temperature 10-38 °C, max. relative humidity: 90 % (non-condensing)
  • Gas: ultrahigh purity compressed gas regulated to a pressure of 20 psi (N2)
