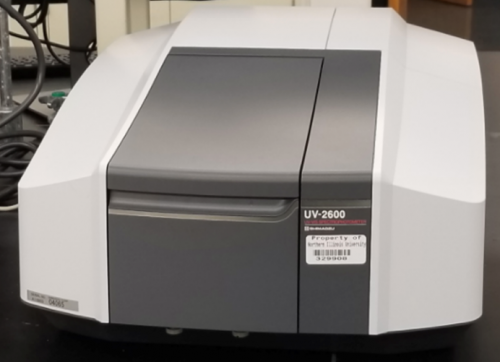

UV-Visible Spectrophotometer UV-2600
Manufacturer and type
Shimadzu, UV-2600
Location
Department of Textile Chemistry and Ecology
Contact person:
Prof. Sandra Bischof, PhD
sbischof@ttf.unizg.hr
Application:
UV-Visible is a spectrophotometer for measuring the absorbance, permeability and reflection of liquid and solid samples. The instrument is controlled via a computer using special UVProbe software.
THE STANDARDS COVERED BY THIS DEVICE ARE:
- HRN EN 13758-1:2008, Textiles - Solar UV protective properties - Part 1: Method of test for apparel fabrics (EN 13758-1:2001+A1:2006)
- AATCC Test Method 183-2014 Transmittance or Blocking of Erythermally Weighted Ultraviolet Radiation Through Fabrics
- ASTM D1776 / D1776M – 20 Standard Practice for Conditioning and Testing Textiles
- ASTM E179 – 17 Standard Guide for Selection of Geometric Conditions for Measurement of Reflection and Transmission Properties of Materials
- ASTM E275 - 08(2013) Standard Practice for Describing and Measuring Performance of Ultraviolet and Visible Spectrophotometers
- ASTM G173 - 03(2020) Standard Tables for Reference Solar Spectral Irradiances: Direct Normal and Hemispherical on 37° Tilted Surface
- ASTM E1348 - 15e1 Standard Test Method for Transmittance and Color by Spectrophotometry Using Hemispherical Geometry
- ASTM E1247 - 12(2017) Standard Practice for Detecting Fluorescence in Object-Color Specimens by Spectrophotometry
- ASTM D6544 – 12 Standard Practice for Preparation of Textiles Prior to Ultraviolet (UV) Transmission Testing
- ASTM D6603 – 19 Standard Specification for Labeling of UV-Protective Textiles
- AATCC Test Method 183-2020 Transmittance or Blocking of Erythermally Weighted Ultraviolet Radiation Through Fabrics
Technical characteristics:
- Wavelength range: 300 - 1100 nm
- Equipped with a single monochromator
- Power consumption: 170 VA
- 400 mm wide and 600 mm deep
- D2 (deuterium) lamp
- WI (halogen) lamp
- 5-Abs coverage
